OpenCPN sur mini PC 32 bit, sous Linux Mint

Bonjour
J'ai un mini PC (HP mini 210-1000) doté d'un processeur Intel-Atom, de 2 GB RAM et d'un disque dur de 250 GB.
Il était sous Lubuntu et je faisais tourner OpenCPN dessus. Mais j'avais de problèmes d'affichage.
Mon fils m'a installé un Linux Mint, après reformatage complet.
Nous avons réinstallé OpenCPN mais celui-ci refuse au démarrage...
J'ai pensé à un problème de version 64 bits / 32 bits mais le processeur semble bien en x86_64 bits. tout du moins le kernel du system installé.
Je coince un peu...
merci d'avance pour toute aide.

L'équipage
20h
20h20h

essaie de lancer opencpn en ligne de commande dans un terminal pour voir les messages.
Sinon :
www.dealicash.fr[...]10-1000
www.notebookcheck.biz[...].0.html
Si j'en crois les liens, il s'agit d'un atom N450, architecture X86, donc c'est un 32 bits.
Comme c'est un processeur pas costaud, une distribution "légère" est plus adaptée, ce qui était le cas de la Lubuntu (bureau LXDE qui est peu gourmand)
Ensuite voir les ressources vidéo versus le besoin d'opencpn


Bonjour j ai opencpn avec linux mint sur un panasonic toughbook cf19 32 bit 1.6mhz pas de problème de fonctionnement.


Duduche Braz:Merci, ça me rassure sur la faisabilité. Quelles versions de Mint et d'OpenCPN as tu ? ·le 04 juil. 09:01

Apparemment, l'atom N450 est bien compatible 64 bits :
www.tomshardware.fr[...]x-atom/


Duduche Braz:Oui, c'est aussi ce que j'ai cru comprendre en lisant les caractéristiques du système... ·le 04 juil. 15:00
Duduche Braz:La version de Mint n'aurait pas pu s'installer sur un 32 bits, a priori.·le 04 juil. 15:02
Lady_C:à condition que le constructeur ait validé l'usage des extensions x64 dans le bios.
sur ces machines un peu spécifiques à la charnière d'une époque, ça a pu ne pas être fait.·le 04 juil. 15:04
Lady_C:il existe encore une version 32 bits www.linuxmint.com[...]ion.php ·le 04 juil. 15:28

Voilà les relevés du système :
System:
Kernel: 6.8.0-63-generic arch: x8664 bits: 64 compiler: gcc v: 13.3.0 clocksource: hpet
Desktop: Xfce v: 4.18.1 tk: Gtk v: 3.24.41 wm: xfwm4 v: 4.18.0 with: xfce4-panel
tools: light-locker vt: 7 dm: LightDM v: 1.30.0 Distro: Linux Mint 22.1 Xia
base: Ubuntu 24.04 noble
Machine:
Type: Laptop System: Hewlett-Packard product: HP Mini 210-1000 v: 04A3100000202100000300000
serial: Chassis: type: 10 serial:
Mobo: Hewlett-Packard model: 3660 v: 48.10 serial: part-nu: VX826EA#ABF
uuid: BIOS: Hewlett-Packard v: F.05 date: 02/22/2010
Battery:
ID-1: BAT0 charge: 37.3 Wh (73.0%) condition: 51.1/62.2 Wh (82.3%) volts: 11.7 min: 11.1
model: Hewlett-Packard Primary type: Li-ion serial: N/A status: discharging
CPU:
Info: single core model: Intel Atom N450 bits: 64 type: MT smt: enabled arch: Bonnell rev: A
cache: L1: 56 KiB L2: 512 KiB
Speed (MHz): avg: 1662 min/max: 1000/1666 cores: 1: 1662 2: 1662 bogomips: 6649
Flags: ht lm nx pae sse sse2 sse3 ssse3
Graphics:
Device-1: Intel Atom Processor D4xx/D5xx/N4xx/N5xx Integrated Graphics vendor: Hewlett-Packard
driver: i915 v: kernel arch: PowerVR SGX535 ports: active: LVDS-1 empty: VGA-1 bus-ID: 00:02.0
chip-ID: 8086:a011 class-ID: 0300
Device-2: Silicon Motion - Taiwan (formerly Feiya ) HP Webcam-50 driver: uvcvideo type: USB
rev: 2.0 speed: 480 Mb/s lanes: 1 bus-ID: 1-4:3 chip-ID: 090c:637b class-ID: 0e02
Display: x11 server: X.Org v: 21.1.11 with: Xwayland v: 23.2.6 compositor: xfwm4 v: 4.18.0
driver: X: loaded: intel unloaded: fbdev,modesetting,vesa dri: i915 gpu: i915 display-ID: :0.0
screens: 1
Screen-1: 0 s-res: 1024x600 s-dpi: 96 s-size: 270x158mm (10.63x6.22") s-diag: 313mm (12.32")
Monitor-1: LVDS-1 mapped: LVDS1 model: BT101IW03 V.0 res: 1024x600 hz: 60 dpi: 118
size: 220x120mm (8.66x4.72") diag: 255mm (10") modes: 1024x600
API: EGL v: 1.5 hw: drv: intel i915 platforms: device: 0 egl: 1.4 drv: i915 device: 1
drv: swrast gbm: egl: 1.4 drv: i915 surfaceless: egl: 1.4 drv: i915 x11: egl: 1.4 drv: i915
inactive: wayland
API: OpenGL v: 4.5 compat-v: 2.1 vendor: mesa v: 24.2.8-1ubuntu1~24.04.1 glx-v: 1.4
direct-render: yes renderer: i915 (: Pineview M) device-ID: 8086:a011
Audio:
Device-1: Intel NM10/ICH7 Family High Definition Audio vendor: Hewlett-Packard
driver: snd
hda_intel v: kernel bus-ID: 00:1b.0 chip-ID: 8086:27d8 class-ID: 0403
API: ALSA v: k6.8.0-63-generic status: kernel-api
Server-1: PipeWire v: 1.0.5 status: active with: 1: pipewire-pulse status: active
2: wireplumber status: active 3: pipewire-alsa type: plugin
Network:
Device-1: Realtek RTL810xE PCI Express Fast Ethernet vendor: Hewlett-Packard driver: r8169
v: kernel pcie: speed: 2.5 GT/s lanes: 1 port: 5000 bus-ID: 01:00.0 chip-ID: 10ec:8136
class-ID: 0200
IF: eno1 state: down mac:
Device-2: Broadcom BCM4312 802.11b/g LP-PHY vendor: Hewlett-Packard driver: wl v: kernel pcie:
speed: 2.5 GT/s lanes: 1 bus-ID: 02:00.0 chip-ID: 14e4:4315 class-ID: 0280
IF: wlp2s0 state: up mac:
Bluetooth:
Device-1: HP Integrated Module with Bluetooth 2.1 Wireless driver: btusb v: 0.8 type: USB
rev: 2.0 speed: 12 Mb/s lanes: 1 bus-ID: 4-2:2 chip-ID: 03f0:2a1d class-ID: fe01 serial:
Report: hciconfig ID: hci0 rfk-id: 3 state: up address: bt-v: 2.1 lmp-v: 4 sub-v: 4203
hci-v: 4 rev: 15d class-ID: 7c010c
Drives:
Local Storage: total: 232.89 GiB used: 16.16 GiB (6.9%)
ID-1: /dev/sda vendor: Hitachi model: HTS725025A9A364 size: 232.89 GiB speed: 3.0 Gb/s
tech: HDD rpm: 7200 serial: fw-rev: C72E scheme: GPT
Partition:
ID-1: / size: 227.68 GiB used: 16.15 GiB (7.1%) fs: ext4 dev: /dev/sda3
ID-2: /boot/efi size: 512 MiB used: 6.1 MiB (1.2%) fs: vfat dev: /dev/sda2
Swap:
ID-1: swap-1 type: file size: 5.94 GiB used: 71.2 MiB (1.2%) priority: -2 file: /swapfile
USB:


Et voici un extrait du fichier opencpn.log
18:13:02.795 INFO logger.cpp:130 ------- OpenCPN version 5.10.2 restarted at 2025-07-03 -------

18:13:02.795 INFO logger.cpp:130 Using loglevel INFO
18:13:02.795 MESSAGE ocpnapp.cpp:1149 wxWidgets version: wxWidgets 3.2.4 Linux 64 bit wxGTK
18:13:02.892 MESSAGE ocpn
app.cpp:1154 OS Version reports as: 6.8
18:13:02.892 MESSAGE ocpnapp.cpp:1156 MemoryStatus: memtotal: 1931 mb, meminitial: 863 mb
18:13:02.892 MESSAGE ocpn
app.cpp:1168 OCPNOSDetail: x8664 ; Linux Mint ; 24.04 ; linuxmint ; "ubuntu
18:13:02.892 MESSAGE ocpnapp.cpp:1172 SDataLocn is /usr/share/opencpn/
18:13:02.894 MESSAGE ocpnapp.cpp:1190 PrivateDataDir is /home/guillaume/.opencpn
18:13:02.903 MESSAGE ocpn
app.cpp:1255 Using existing ConfigFile: /home/guillaume/.opencpn/opencpn.conf
18:13:02.958 MESSAGE navutil.cpp:1247 winPluginDir, read from ini file:
18:13:02.958 MESSAGE navutil.cpp:1329 Setting Ownship Lat/Lon 33.358, -79.282
18:13:02.958 MESSAGE navutil.cpp:3327 Switch InlandEcdis mode Off
18:13:03.002 MESSAGE ConfigMgr.cpp:548 Loading Configs catalog: /home/guillaume/.opencpn/Configs/configs.xml
18:13:03.039 MESSAGE styles.cpp:841 Styles loading from /usr/share/opencpn/uidata/styles.xml
18:13:03.051 MESSAGE styles.cpp:818 No styles found at: /home/guillaume/
18:13:03.051 MESSAGE styles.cpp:818 No styles found at: /home/guillaume/.opencpn/
18:13:03.123 MESSAGE styles.cpp:775 Using SVG Icons
18:13:03.123 MESSAGE ocpn
app.cpp:1316 Detected display size (horizontal): 220 mm
18:13:03.135 MESSAGE OCPNPlatform.cpp:1022 Getting DefaultSystemLocale...
18:13:03.136 MESSAGE ocpnapp.cpp:1354 System default Language: frFR
18:13:03.136 MESSAGE ocpnapp.cpp:1357 Config file language:
18:13:03.136 MESSAGE ocpn
app.cpp:1363 Config file language empty, using system default: frFR
18:13:03.136 MESSAGE ocpn
app.cpp:1369 Adjusted App language: frFR
18:13:03.136 MESSAGE OCPNPlatform.cpp:1103 ChangeLocale: Language load for: fr
FR
18:13:03.963 MESSAGE OCPNPlatform.cpp:1156 ChangeLocale: Locale Init OK for: frFR
18:13:03.963 MESSAGE OCPNPlatform.cpp:1180 Loading catalog for opencpn core.
18:13:04.076 MESSAGE OCPNPlatform.cpp:1022 Getting DefaultSystemLocale...
18:13:04.077 MESSAGE ocpn
app.cpp:1376 Opencpn language set to: frFR
18:13:04.081 MESSAGE ocpn
app.cpp:1607 Creating MyFrame...size(716, 420) position(0, 0)

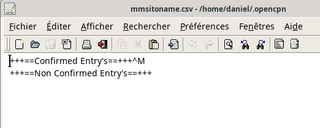

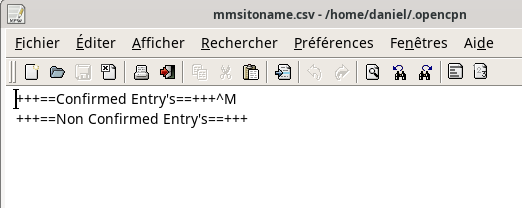

18:13:04.084 ERROR file.cpp:216 impossible d'ouvrir le fichier « /home/guillaume/.opencpn/mmsitoname.csv » (erreur 2 : Aucun fichier ou dossier de ce nom)
18:13:04.086 MESSAGE ocpnframe.cpp:745 **** Connect stuff
18:13:04.094 MESSAGE OCPNPlatform.cpp:916 Starting OpenGL test...
18:13:04.287 MESSAGE OCPNPlatform.cpp:726 Starting OpenGL test utility: "/usr/bin/opencpn-glutil" opengl-info "/home/guillaume/.opencpn/gl
caps.json"
18:13:06.052 MESSAGE OCPNPlatform.cpp:923 OpenGL test complete.
18:13:06.052 MESSAGE OCPNPlatform.cpp:945 OpenGL determined CAPABLE.
20:15:06.712 MESSAGE ocpn_app.cpp:1126
